Purpose and characteristics:
Wszxf digital constant air volume valve has higher precision and accuracy than conventional mechanical constant air volume valve. The air volume error can be controlled within 2-5%, and the function is powerful. The air volume setting can be set arbitrarily. The maximum air volume regulation range can reach 12:1. At the same time, the air flow resistance is small. The minimum resistance under the maximum flow is only 30Pa, and the working pressure range is 30-1500pa. The air valve actuator is DDC controlled, which can be compatible with any kind of building automatic control system, can also be controlled independently, and can communicate with the seven bit machine in time Query and control the air volume data, or independently communicate with the optional wall LCD panel. The air volume data can be directly displayed on the panel, which is convenient for users to timely read and modify the design air volume. It is very intelligent and user-friendly. It is an excellent digital constant air volume valve product, which can be widely used in any ventilation system. It can achieve high-precision control of air volume, and can maintain high comfort or the best air supply and exhaust state in the room.

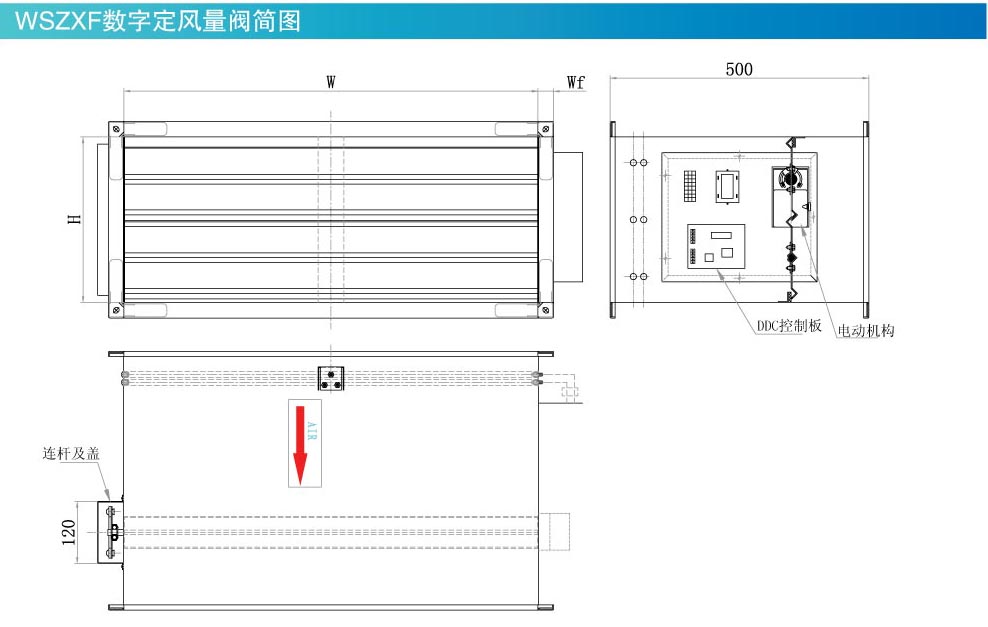

The digital air volume valve is composed of valve body, differential pressure sensor, regulating blade, DDC controller, electric actuator and wall LCD controller (optional). Each product has undergone strict air volume setting before leaving the factory. The air valve timely obtains the instantaneous flow air volume value through its built-in differential pressure sensor, and compares it with the set air volume value, and PI the air valve opening through the built-in program Through calculation, we can get whether the air valve blade is opened or reduced, so as to change the actual air volume value. In this way, we can constantly feed back and correct, so as to obtain stable and stable air volume value, so as to obtain the best air volume precision. Without any change on the site, users can get good air supply and exhaust volume value.
