The low temperature air supply system is generally divided into the following categories according to the air supply temperature:
1. Type I low temperature air supply outlet
The air supply temperature range is 5 ℃ and below, which is ultra-low temperature air supply outlet.
2. Type II low temperature air supply outlet
The air supply temperature range is 6 ℃ ~ 8 ℃, which is the standard air supply outlet.
Purpose and characteristics:

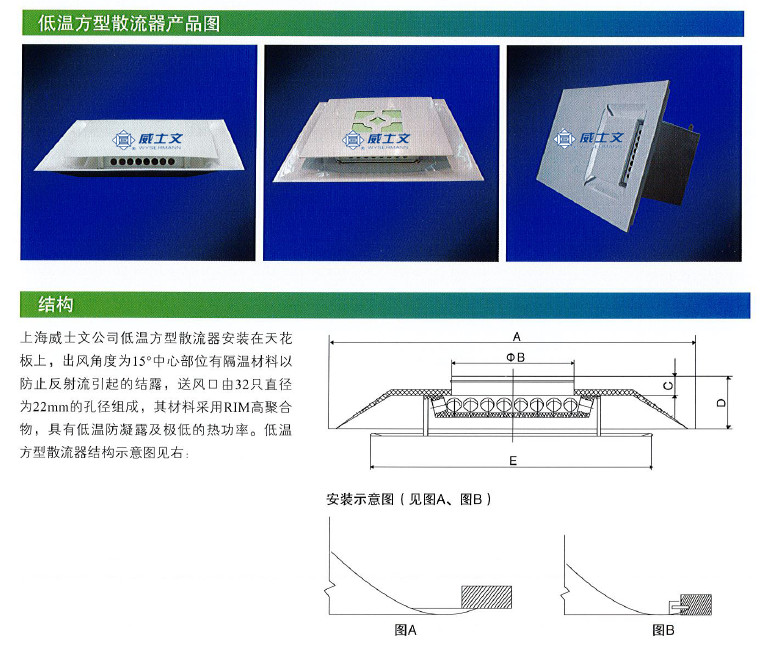

As the country advocates energy conservation and environmental protection, our company timely launched a series of low-temperature tuyeres for ice storage system, which are favored by the majority of designers and customers. The temperature of chilled water or refrigerant carrier in the air conditioning system is 1 ℃ - 5 ℃, so that the air supply temperature of the low temperature system is reduced to 4 ℃ - 10 ℃. This tuyere is made of rim high polymer, which has low temperature anti condensation and extremely low thermal power. Its central part has a thermal insulation material to prevent condensation caused by low temperature reflection flow. The air supply outlet is composed of 32 apertures with a diameter of 22mm, which can be used in combination with VAV system. The air outlet angle is 15 °.
Explain:
The specification has 600 * 600 faces, and the interface has φ 100, φ 150, φ 200 or is processed into square interface according to the installation requirements.
